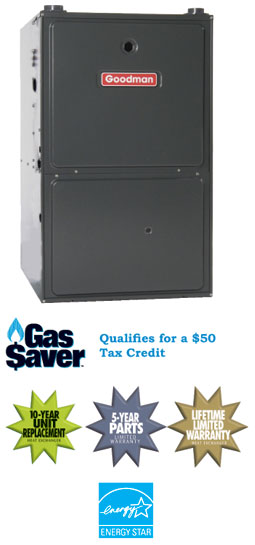

| The
Goodman® GCV9 Two-Stage, Variable-Speed Gas
Furnace features a patented aluminized-steel tubular
heat exchanger and energy-efficient Hot Surface
Ignition system. This furnace is run-tested for
heating or combination heating/cooling applications.
The 93% AFUE GCV9 qualifies for the new 2006
$50 energy tax credit.
Standard Features
§
Corrosion-resistant, aluminized-steel tubular
heat exchanger and stainless-steel recuperative
coil
§
Lifetime Limited Warranty on Heat Exchanger plus
10-year Furnace Replacement Limited Warranty
§
Designed for multi-position installation (downflow,
horizontal right or left)
§
Energy-saving Hot Surface Ignition system with
Norton® Mini-Igniter and patented adaptive learning
algorithm
§
Auto-Comfort mode to maintain a comfortable climate
§
2-stage gas valve
§
Super-efficient, quiet variable-speed blower
motor
§
Quiet, 2-speed, induced-draft blower assembly
§
Integrated furnace control with diagnostics
§
Low-voltage terminal blocks
§
Suitable for direct vent (2-pipe) or non-direct
vent (1-pipe) applications
§
Convenient left or right connection for gas/electric
service
§
All models comply with California NOx Standards
Cabinet Features
§
Heavy-gauge, reinforced, fully insulated steel
cabinet with durable, Architectural Gray baked-enamel
finish
§
Foil-faced insulation lines the heat exchanger
compartment |
|
Model |
Rated Heating
High Fire |
Rated Heating
Low Fire |
AFUE |
Available
Cooling |
Dimensions
W" x D" x H" |
Ship Weight
(lbs) |
| Input |
Output |
Input |
Output |
| GCV90704CXA |
69,000 |
65,000 |
48,000 |
45,000 |
93.0 |
1.5 - 4.0 |
21 x 28 x 40 |
135 |
| GCV90905DXA |
92,000 |
87,000 |
64,000 |
60,100 |
93.0 |
2.0 - 5.0 |
24½ x 28 x 40 |
172 |
|

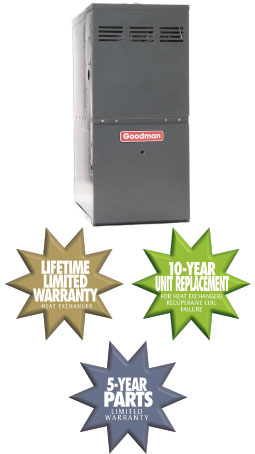

| The
Goodman® GHS8 Single-Stage, Multi-Speed,
High Airflow Gas Furnaces feature our patented aluminized-steel
tubular heat exchanger and high-efficiency Hot Surface
Ignition system. This furnace is completely assembled
at our factory and run-tested for heating or combination
heating/cooling applications. With a heavy-gauge,
reinforced, wrap-around insulated steel cabinet
and durable baked enamel finish, these units can
be installed in a variety of locations.
§
Corrosion-resistant, aluminized-steel tubular
heat exchanger
§
Designed for high air flow, upflow, horizontal
right or left installation
§
Energy-saving, reliable Hot Surface Ignition
system, featuring a Norton® Mini-Igniter
with patented adaptive learning algorithm to maximize
igniter life
§
Aluminized-steel inshot burners
§
Energy-saving PSC, multi-speed, direct-drive
blower motor
§
Quiet, corrosion-resistant, induced-draft blower
§
Integrated furnace control with diagnostics
§
Low-voltage terminal blocks
§
Multiple flame roll-out switches, blower door
safety switch, outlet air-limit switch and pressure
switch for proof of combustion air
§
40VA transformer for heating and air conditioning
control service
§
Combination redundant gas valve and regulator
§
A rotating combustion air blower that provides
the option of venting the furnace through the top,
right-hand side or left-hand side
§
Foil-face insulation lines the heat exchanger
compartment
§
Coil and furnace fit flush for easy installation
§
Convenient left or right connection for gas and
electric service
§
Bottom or side air inlet
§
Removable, solid bottom
§
Heavy-gauge, reinforced, fully insulated steel
cabinet with durable, baked-enamel, Architectural
Gray paint finish |
| |
|
|
|
|
|
| GHS80453ANA |
45,000 |
36,000 |
3.0 |
14"
x 28" x 39" |
120 |
| GHS80704BNA |
70,000 |
56,000 |
4.0 |
17-1/2"
x 28" 39" |
130 |
| GHS80905CNA |
90,000 |
72,000 |
5.0 |
21"
x 28" x 39" |
153 |
|
| The
Goodman® GMS8/GDS8 Single-Stage,
Multi-Speed Gas Furnaces feature a patented aluminized
steel tubular heat exchanger and energy-efficient
Hot Surface Ignition system. These furnaces are
run-tested for heating or combination heating/cooling
applications. With a heavy-gauge, reinforced, wrap-around
insulated steel cabinet and durable baked enamel
finish, these units can be installed in a variety
of locations.
§
Corrosion-resistant, aluminized-steel tubular
heat exchanger
§
Multi-position installation—GMS8: upflow,
horizontal right or left; GDS8: dedicated downflow
§
Energy-saving, reliable Hot Surface Ignition
system, featuring a Norton® Mini-Igniter
with patented adaptive learning algorithm to maximize
igniter life
§
Energy-saving PSC, multi-speed, direct-drive
blower motor
§
Quiet, corrosion-resistant, induced-draft blower
§
Integrated furnace control with diagnostics
§
Low-voltage terminal blocks
§
Combination redundant gas valve and regulator
§
A rotating combustion air blower (GMS8) that
provides the option of venting the furnace through
the top, right-hand side or left-hand side
§
Specific models comply with California NOx Standards
§
Foil-face insulation lines the heat exchanger
compartment
§
Coil and furnace fit flush for easy installation
§
Convenient left or right connection for gas and
electric service
§
Bottom or side air inlet (GMS8)
§
Removable, solid bottom (GMS8) |
| |
|
|
|
|
|
| GMS80453ANA* |
45,000 |
36,000 |
3.0 |
14"
x 28" x 39" |
120 |
| GMS80703ANA* |
70,000 |
56,000 |
3.0 |
14"
x 28" x 39" |
130 |
| GMS80704BNA* |
70,000 |
56,000 |
4.0 |
17-1/2"
x 28" x 39" |
143 |
| GMS80903BNA |
90,000 |
72,000 |
3.0 |
17-1/2"
x 28" x 39" |
153 |
| GMS80904BNA* |
90,000 |
72,000 |
4.0 |
17-1/2"
x 28" x 39" |
153 |
| GMS80905CNA* |
90,000 |
72,000 |
5.0 |
21"
x 28" x 39" |
163 |
| GMS81155CNA* |
115,000 |
92,000 |
5.0 |
21"
x 28" x 39" |
163 |
| GMS81405DNA* |
140,000 |
112,000 |
5.0 |
24-1/2"
x 28" x 39" |
183 |
| GDS80453ANA |
45,000 |
36,000 |
3.0 |
14"
x 28" x 39" |
120 |
| GDS80703ANA |
70,000 |
56,000 |
3.0 |
14"
x 28" x 39" |
130 |
| GDS80904BNA |
90,000 |
72,000 |
4.0 |
17-1/2"
x 28" x 39" |
153 |
| GDS81155CNA |
115,000 |
92,000 |
5.0 |
21"
x 28" x 39" |
175 |
* Low NOx model available |

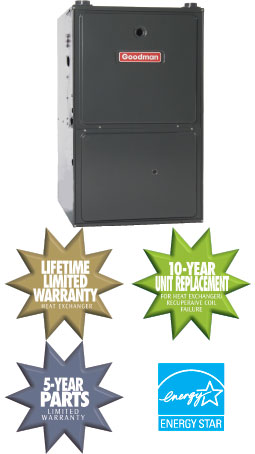

| The
Goodman® GMS9/GCS9 Single-Stage,
Multi-Speed Gas Furnaces feature a patented aluminized-steel
tubular heat exchanger and energy-efficient Hot
Surface Ignition system. These furnaces are run-tested
for heating or combination heating/cooling applications.
With a corrosion-resistant, painted steel cabinet,
these units can be installed in a variety of locations.
§
Corrosion-resistant, aluminized-steel tubular
heat exchanger and stainless-steel recuperative
coil for maximum efficiency
§
Multi-position installation—GMS9: upflow,
horizontal right or left; GCS9: downflow, horizontal
right or left
§
Energy-saving, reliable Hot Surface Ignition
system, featuring a Norton® Mini-Igniter
with patented adaptive learning algorithm to maximize
igniter life
§
Energy-saving PSC, multi-speed, direct-drive
blower motor
§
Quiet, corrosion-resistant, induced-draft blower
§
Integrated furnace control with diagnostics
§
Low-voltage terminal blocks
§
Combination redundant gas valve and regulator
§
Top venting is standard; alternate flue/vent
located on right side (GMS9)
§
All models comply with California NOx Standards
§
Suitable for direct vent (2-pipe) or non-direct
vent (1-pipe) applications
§
Foil-face insulation lines the heat exchanger
compartment
§
Convenient left or right connection for gas and
electric service
§
Bottom or side air inlet (GMS9)
§
Removable, solid bottom (GMS9) |
| |
|
|
|
|
|
| GMS90453BXA |
46,000 |
42,800 |
3.0 |
17-1/2"
x 28" x 40" |
132 |
| GMS90703BXA |
69,000 |
64,400 |
3.0 |
17-1/2"
x 28" x 40" |
135 |
| GMS90904CXA |
92,000 |
86,000 |
4.0 |
21"
x 28" x 40" |
158 |
| GMS91155DXA |
115,000 |
106,500 |
5.0 |
24-1/2"
x 28" x 40" |
175 |
| GCS90453BXA |
46,000 |
42,800 |
3.0 |
17-1/2"
x 28" x 40" |
132 |
| GCS90703BXA |
69,000 |
64,400 |
3.0 |
17-1/2"
x 28" x 40" |
135 |
| GCS90904CXA |
92,000 |
86,000 |
4.0 |
21"
x 28" x 40" |
156 |
| GCS91155DXA |
115,000 |
106,500 |
5.0 |
24-1/2"
x 28" x 40" |
175 |
|

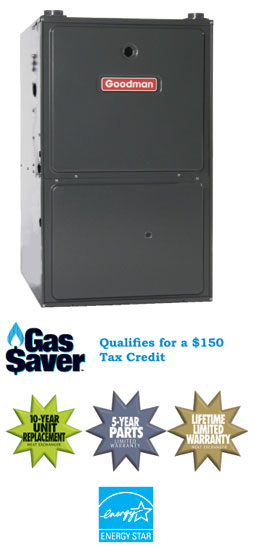

| The
Goodman® GMS95 Single-Stage, Multi-Speed furnaces
feature a patented aluminized-steel tubular heat
exchanger and energy-efficient Hot Surface Ignition
system. These furnaces are run-tested for heating
or combination heating/cooling applications. The
95% AFUE GMS95 qualifies for the new 2006 $150
energy tax credit.
Standard Features
§
Corrosion-resistant, aluminized-steel tubular
heat exchanger and stainless-steel recuperative
coil
§
Lifetime Limited Warranty on Heat Exchanger plus
10-year Furnace Replacement Limited Warranty
§
Designed for multi-position installation —
upflow, horizontal right or left
§
Energy-saving Hot Surface Ignition system with
Norton® Mini-Igniter and patented adaptive learning
algorithm
§
Energy-saving PSC, multi-speed, direct-drive
blower motor
§
Quiet, corrosion-resistant, induced-draft blower
assembly
§
Integrated furnace control with diagnostics
§
Low-voltage terminal blocks
§
Suitable for direct vent (2-pipe) or non-direct
vent (1-pipe) applications
§
Convenient left or right connection for gas and
electric service
§
All models comply with California NOx Standards
Cabinet Features
§
Heavy-gauge, reinforced, fully insulated steel
cabinet with durable, Architectural Gray baked-enamel
finish
§
Top venting is standard; alternate flue/vent
located on right side
§
Foil-faced insulation lines the heat exchanger
compartment
§
Bottom or side air inlet; removable, solid bottom
|
|
Model |
Heating Capacity |
Available
Cooling
@0.5ESP
(tons) |
AFUE |
Dimensions
W" x D" x H" |
Ship
Weight
(lbs) |
| Input
(BTUH) |
Output
(BTUH) |
| GMS950453BXA |
46,000 |
44,600 |
3.0 |
95% |
17½x28x40 |
132 |
| GMS950703BXA |
69,000 |
66,400 |
3.0 |
95% |
17½x28x40 |
135 |
| GMS950704CXA |
69,000 |
66,400 |
4.0 |
95% |
21x28x40 |
136 |
| GMS950904CXA |
92,000 |
89,000 |
4.0 |
95% |
21x28x40 |
158 |
| GMS950905DXA |
92,000 |
88,400 |
5.0 |
95% |
24½x28x40 |
172 |
| GMS951155DXA |
115,000 |
110,500 |
5.0 |
95% |
24½x28x40 |
175 |
|

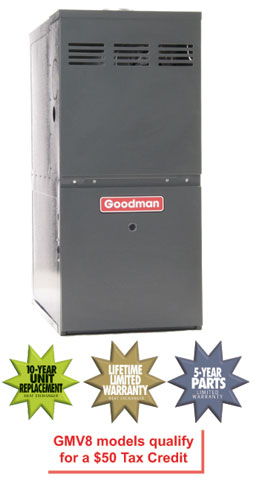

| The
Goodman® GMV8 Two-Stage, Variable-Speed
Gas Furnace features a patented aluminized-steel
tubular heat exchanger and energy-efficient Hot
Surface Ignition system. This furnace is run-tested
for heating or combination heating/cooling applications.
With a heavy-gauge, reinforced, wrap-around insulated
steel cabinet and durable baked enamel finish, these
units can be installed in a variety of locations.
§
Corrosion-resistant, aluminized-steel tubular
heat exchanger
§
Multi-position installation—upflow, horizontal
right or left
§
Energy-saving, reliable Hot Surface Ignition
system, featuring a Norton® Mini-Igniter
with patented adaptive learning algorithm to maximize
igniter life
§
Auto-Comfort mode helps to efficiently create
and maintain a comfortable climate by intuitively
adjusting to the room’s environment
§
2-stage gas valve and super-efficient, quiet
variable-speed blower motor
§
Quiet, 2-speed, induced-draft blower
§
Integrated furnace control with diagnostics
§
Low-voltage terminal blocks
§
A rotating combustion air blower that provides
the option of venting the furnace through the top,
right-hand side or left-hand side
§
All models comply with California NOx Standards
§
Foil-face insulation lines the heat exchanger
compartment
§
Coil and furnace fit flush for easy installation
§
Convenient left or right connection for gas and
electric service
§
Bottom or side air inlet
§
Removable, solid bottom |
|
|
|
|
|
|
|
| |
|
|
|
| GMV80704BXA |
70,000 |
57,400 |
52,500 |
42,000 |
1.5-3.0 |
17" x 28"
x 39" |
152 |
| GMV80905CXA |
90,000 |
73,600 |
67,500 |
54,000 |
2.0-5.0 |
21" x 28"
x 39" |
178 |
| GMV81155CXA |
115,000 |
92,000 |
86,000 |
69,000 |
2.0-5.0 |
21" x 28"
x 39" |
194 |
|

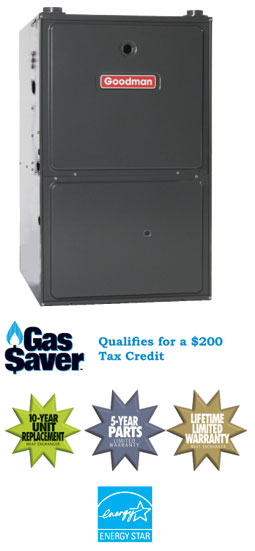

| The
Goodman® GMV95 Two-Stage, Variable-Speed Gas
Furnace features a patented aluminized-steel tubular
heat exchanger and energy-efficient Hot Surface
Ignition system. This furnace is run-tested for
heating or combination heating/cooling applications.
The 95% AFUE GMV95 qualifies for the new 2006
$200 energy tax credit.
Standard Features
§
Corrosion-resistant, aluminized-steel tubular
heat exchanger and stainless-steel recuperative
coil
§
Lifetime Limited Warranty on Heat Exchanger plus
10-year Furnace Replacement Limited Warranty
§
Designed for multi-position installation (upflow,
horizontal right or left)
§
Energy-saving Hot Surface Ignition system with
Norton® Mini-Igniter and patented adaptive learning
algorithm
§
Auto-Comfort mode to maintain a comfortable climate
§
2-stage gas valve
§
Super-efficient, quiet variable-speed blower
motor
§
Quiet, 2-speed, induced-draft blower assembly
§
Integrated furnace control with diagnostics
§
Low-voltage terminal blocks
§
Suitable for direct vent (2-pipe) or non-direct
vent (1-pipe) applications
§
Convenient left or right connection for gas/electric
service
§
All models comply with California NOx Standards
Cabinet Features
§
Heavy-gauge, reinforced, fully insulated steel
cabinet with durable, Architectural Gray baked-enamel
finish
§
Foil-faced insulation lines the heat exchanger
compartment
§
Top venting standard; alternate flue/vent located
on right
§
Bottom or side air inlet; removable, solid bottom
|
|
Model |
Rated Heating
High Fire |
Rated Heating
Low Fire |
Available
Cooling |
Dimensions
W" x D" x H" |
Ship Weight
(lbs) |
| Input |
Output |
Input |
Output |
| GMV950453BXA |
46,000 |
45,000 |
32,000 |
30,800 |
1.5-3.0 |
17½x28x40 |
133 |
| GMV950704CXA |
69,000 |
67,000 |
48,000 |
46,400 |
1.5-4.0 |
21x28x40 |
135 |
| GMV950905DXA |
92,000 |
90,000 |
64,000 |
61,700 |
2.0-5.0 |
24½x28x40 |
172 |
| GMV951155DXA |
115,000 |
109,000 |
80,000 |
77,400 |
2.0-5.0 |
24½x28x40 |
175 |
|
|
|
| |
 |
|
