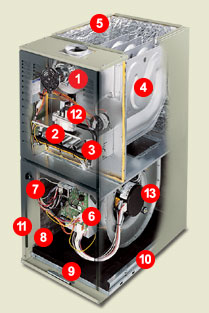

| 1. |
Induced
draft venting quietly draws hot gases through the
heat exchanger, maximizing the heat transfer efficiencies
of the exchanger design. |
| 2. |
Multi-port
in-shot burners perfectly shape the flame cone for
the maximum heat possible while using less fuel.
|
| 3. |
Adaptive
silicon nitride hot surface igniter starts burners
electrically for safe, efficent operation. There's no pilot light constantly burning
fuel. |
| 4. |
Aluminized
steel heat exchanger is crimped, not welded, to
prevent cracks from heat stress. Stamped serpentine
channel offers the greatest efficiency in less space.
Backed by our 20-year non-prorated, limited warranty.
|
| 5. |
Heavy
steel insulated cabinet holds more heat in the furnace
to better warm your home. Also assures greater durability
and quieter operation. |
| 6. |
Self-diagnostic
controls are the solid-state brain of the Freedom®
80 and manage every function with digital accuracy.
Includes safety features and a built-in troubleshooting
system. |
| 7. |
Dual
door latches allow easy access to the filter for
cleaning or changing (on upflow models only). |
| 8. |
Sound-insulated
blower compartment assures the quietest possible
operation. |
| 9. |
Cleanable
filter |
| 10. |
Spring-loaded
filter rack automatically adjusts for standard size
off-the-shelf filters (on upflow
models only). |
| 11. |
Automotive
grade gaskets and insulated blower door reduce operating
sound and air infiltration. |
| 12. |
Two-stage
gas valve works efficiently with the multi-speed
motor, providing only as much fuel as each stage
requires. |
| 13. |
Variable
speed blower motor operates at a lower, more efficient
speed than conventional blowers. American Standard's
exclusive Comfort-R™ feature is an added bonus
with variable speed. Comfort-R™ provides greater
humidity control in cooling. |
| 1. |
Multispeed blower motor - Operates quietly and efficiently, gently
warming and maintaining comfort. Handles all central
air conditioning needs, too. |
| 2. |
Induced
draft venting - Quietly draws hot gases through
the heat exchanger, maximizing the heat transfer
efficiencies of the exchanger design. |
| 3. |
Multi-port
in-shot burners - Multi-port in-shot burners perfectly
shape the flame cone for the maximum heat possible
while using less fuel. |
| 4. |
Adaptive
hot surface silicon nitride igniter - Starts burners
electrically for safe, efficent operation. There’s no pilot light constantly
burning fuel. |
| 5. |
Aluminized
steel heat exchanger - Crimped, not welded, to prevent
cracks from heat stress. Stamped serpentine channel
offers the greatest efficiency in less space. Backed
by our 20-year, non-prorated, limited warranty. |
| 6. |
Heavy
steel insulated cabinet - Holds more heat in the
furnace to better warm your home. Also assures greater
durability and quieter operation. |
| 7. |
Self-diagnostic
controls - Manage every function with digital accuracy.
Include safety features and a built-in troubleshooting
system. |
| 8. |
Sound-insulated
blower compartment - Assures the quietest possible
operation. |
| 1. |
Induced
draft venting quietly draws hot gases through the
heat exchanger, maximizing the heat transfer efficiencies
of the exchanger design. |
| 2. |
Multi-port
in-shot burners perfectly shape the flame cone for
the maximum heat possible while using less fuel. |
| 3. |
Adaptive
silicon nitride hot surface ignitor
starts burning electically for safe, efficient operation. There's no pilot
light constantly burning fuel. |
| 4. |
Aluminized
steel heat exchanger is crimped, not welded, to
prevent cracks from heat stress. Stamped serpentine
channel offers the greatest efficiency in less space.
Backed by our 20-year non-prorated, limited warranty.
|
| 5. |
Heavy
steel insulated cabinet holds more heat in the furnace
to better warm your home. Also assures greater durability
and quieter operation. |
| 6. |
Self-diagnostic
controls are the solid-state brain of the Freedom®
80 and manage every function with digital accuracy.
Includes safety features and a built-in troubleshooting
system. |
| 7. |
Dual
door latches allow easy access to the filter for
cleaning or changing (on upflow models only). |
| 8. |
Sound
insulated blower compartment assures the quietest
possible operation. |
| 9. |
Cleanable
filter |
| 10. |
Spring-loaded
filter rack automatically adjusts for standard size
off-the-shelf filters (on upflow
models only). |
| 11. |
Automotive
grade gaskets and insulated blower door reduce operating
sound and air infiltration. |
| 12. |
Two-stage
gas valve works efficiently with the multi-speed
motor, providing only as much fuel as each stage
requires. |
| 13. |
Multi-speed
blower motor operates quietly and efficiently, gently
warming and maintaining comfort. Handles all central
air conditioning needs, too. |

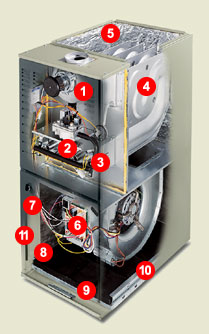

| 1. |
Induced
draft venting quietly draws hot gases through the
heat exchanger, maximizing the heat transfer efficiencies
of the exchanger design. |
| 2. |
Multi-port
in-shot burners perfectly shape the flame cone for
the maximum heat possible, while using less fuel.
|
| 3. |
Adaptive
silicon nitride hot surface igniter starts burners
electrically for safe, efficient operation. There's
no pilot light constantly burning fuel. |
| 4. |
Aluminized
steel heat exchanger is crimped, not welded, to
prevent cracks from heat stress. Stamped serpentine
channel offers greatest efficiency in less space.
Backed by our 20-year, non-prorated, limited warranty.
|
| 5. |
Heavy
steel insulated cabinet holds more heat in the furnace
to better warm your home. Also assures greater durability
and quieter operation. |
| 6. |
Self-diagnostic
controls are the solid-state brain of the Freedom®
80 and manage every function with digital accuracy.
Includes safety features and a built-in troubleshooting
system. |
| 7. |
Dual
door latches allow easy access to the filter for
cleaning or changing (on upflow models only). |
| 8. |
Sound
insulated blower compartment assures the quietest
possible operation. |
| 9. |
Cleanable
filter |
| 10. |
Spring-loaded
filter rack automatically adjusts for standard off-the-shelf
filters (on upflow models only). |
| 11. |
Automotive
grade gaskets and insulated blower door reduce operating
sound and air infiltration. |

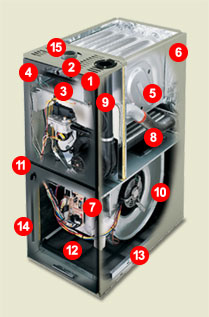

| 1. |
Induced
draft venting |
| 2. |
Multi-port
in-shot burners |
| 3. |
Adaptive
hot surface silicon nitride igniter |
| 4. |
Sealed
combustion |
| 5. |
Aluminized
steel heat exchanger |
| 6. |
Heavy
steel insulated cabinet |
| 7. |
Self-diagnostic
controls |
| 8. |
AL29-4C™
stainless steel secondary heat exchanger |
| 9. |
Internal
vent pipe |
| 10. |
Variable
speed blower motor operates at a lower, more efficient
speed than conventional blowers. American Standard’s
exclusive Comfort-R™ feature is an added bonus
with variable speed. Comfort-R™ provides greater
humidity control in cooling. |
| 11. |
Dual
door latches |
| 12. |
Cleanable
filter |
| 13. |
Spring-loaded
filter rack |
| 14. |
Automotive
grade gaskets and insulated blower door |
| 15. |
Direct
vent option |
| 16. |
Two-stage
gas valve |
| 17. |
Variable
speed draft inducer |
| 1. |
Multispeed blower motor - Operates quietly and efficiently, gently
warming and maintaining comfort. Handles all central
air conditioning needs, too. |
| 2. |
Induced
draft venting - Quietly draws hot gases through
the heat exchanger, maximizing the heat transfer
efficiencies of the exchanger design. |
| 3. |
Multi-port
in-shot burners - Perfectly shape the flame cone
for the maximum heat possible while using less fuel. |
| 4. |
Adaptive
hot surface silicon nitride igniter - Starts burners
electrically for safe, efficient operation. There’s
no pilot light constantly burning fuel. |
| 5. |
Aluminized
steel heat exchanger - Crimped, not welded, to prevent
cracks from heat stress. Stamped serpentine channel
offers the greatest efficiency in less space. Backed
by our lifetime limited warranty. |
| 6. |
Stainless
steel secondary heat exchanger - Captures more of
the heat you pay for. |
| 7. |
Heavy
steel insulated cabinet -Holds more heat in the
furnace to better warm your home. Also assures greater
durability and quieter operation. |
| 8. |
Self-diagnostic
controls - Manage every function with digital accuracy.
Include safety features and a built-in troubleshooting
system. |
| 9. |
Sound-insulated
blower compartment - Assures the quietest possible
operation. |
| 10. |
100%
fresh air option - Uses 100% outdoor air for combustion
for increased equipment life and cleaner air. |

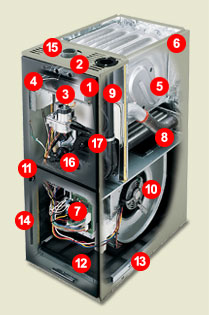

| 1. |
Induced
draft venting |
| 2. |
Multi-port
in-shot burners |
| 3. |
Adaptive
hot surface silicon nitride igniter |
| 4. |
Sealed
combustion |
| 5. |
Aluminized
steel heat exchanger |
| 6. |
Heavy
steel insulated cabinet |
| 7. |
Self-diagnostic
controls |
| 8. |
AL29-4C™
stainless steel secondary heat exchanger |
| 9. |
Internal
vent pipe |
| 10. |
Four
speed induction blower motor operates quietly and
efficiently, gently warming and maintaining comfort.
Handles all central air conditioning needs, too. |
| 11. |
Dual
door latches |
| 12. |
Cleanable
filter |
| 13. |
Spring-loaded
filter rack |
| 14. |
Automotive
grade gaskets and insulated blower door |
| 15. |
Direct
vent option |
| 16. |
Two-stage
gas valve works efficiently with the multi-speed
motor, providing only as much fuel as each stage
requires. |
| 17. |
Variable
speed draft inducer monitors pressure switch input,
making periodic adjustments when needed to provide
proper gas combustion. Eliminates nuisance no heat
calls. |
| 1. |
Induced
draft venting quietly draws hot gases through the
heat exchanger, maximizing the heat transfer efficiencies
of the exchanger design. |
| 2. |
Multi-port
in-shot burners perfectly shape the flame cone for
the maximum heat possible while using less fuel. |
| 3. |
Adaptive
hot surface silicon nitride igniter starts burners
electrically for safe, efficient operation. There’s
no pilot light constantly burning fuel. Backed by
a 5-year limited warranty. |
| 4. |
Sealed
combustion means the burner compartment is sealed
allowing for quieter operation and regional code
compliance. (AUX/ADX models only). |
| 5. |
Aluminized
steel heat exchanger is crimped, not welded, to
prevent cracks from heat stress. Stamped serpentine
channel offers the greatest efficiency in less space.
Backed by a lifetime limited warranty. |
| 6. |
Heavy
steel insulated cabinet holds more heat in the furnace
to better warm your home. Also assures greater durability
and quieter operation. |
| 7. |
Self-diagnostic
controls are the solid-state brain of the Freedom®
90 Single-Stage and manage every function with digital
accuracy. Includes safety features and a built-in
troubleshooting system. |
| 8. |
AL29-4C™
stainless steel secondary heat exchanger captures
more of the heat you pay for. Backed by a lifetime
limited warranty. |
| 9. |
Internal
vent pipe is made of long-lasting CPVC material. |
| 10. |
Multi-speed
blower motor operates quietly and efficiently, gently
warming and maintaining comfort. Handles all central
air conditioning needs for year ‘round comfort. |
| 11. |
Dual
door latches allow easy access to the filter for
cleaning or changing. (On upflow AUX models only.) |
| 12. |
Cleanable
filter means you can rinse or vacuum it without
buying replacements each time. |
| 13. |
Spring-loaded
filter rack automatically adjusts for standard size
off-the-shelf filters. (On upflow
AUX models only.) |
| 14. |
Automotive
grade gaskets and insulated blower door reduce operating
sound and air infiltration. (AUX only) |
| 15. |
Direct
vent option uses 100% outdoor air for combustion
for increased equipment life and cleaner air. (AUX
only) |
|
|
| |
 |
|
