| The
Goodman® CKL Air Conditioner features
an attractive louvered metal guard that protects
the coil from damage and strengthens the unit. Designed
for ground-level or rooftop mount, the raised base
pan elevates the unit above the slab for excellent
water drainage. A polyester powder-paint finish
provides premium durability and improved UV protection.
§
Energy-efficient compressor with internal pressure
release valve
§
Copper tube/aluminum fin coil
§
Totally enclosed, permanently lubricated condenser
motor with a 3-bladed fan
§
1½- to 5-ton models are charged with R-22
for 15’ of refrigerant lines
§
High-capacity, steel-cased liquid line filter
drier
§
Brass liquid and suction service valves mounted
at a 45° angle with sweat connections and service
ports
§
Heavy-gauge G-90 galvanized steel cabinet with
appliance-quality polyester powder-paint finish
with 500-hour salt-spray approval
§
Attractive Architectural Gray paint finish |
|
|
|
|
|
|
|
|
| |
|
| CKL18-1D/-1L |
18,000 |
208/230-1 |
20 |
23"x
23"x 24" |
3/8" |
3/4" |
125 |
| CKL24-1K/-1L |
24,000 |
208/230-1 |
20 |
23"x
23"x 24" |
3/8" |
3/4" |
127 |
| CKL30-1G/-1L |
29,000 |
208/230-1 |
30 |
23"x
23"x 24" |
3/8" |
3/4" |
130 |
| CKL36-1H/-1L |
35,000 |
208/230-1 |
40 |
23"x
23"x 26-1/2" |
3/8" |
3/4" |
142 |
| CKL36-1K/-1L |
35,000 |
208/230-1 |
40 |
23"x
23"x 29" |
3/8" |
3/4" |
142 |
| CKL42-1B/-1L |
41,000 |
208/230-1 |
40 |
23"x
23"x 31-1/2" |
3/8" |
7/8" |
160 |
| CKL49-1A/-1L |
47,000 |
208/230-1 |
40 |
29"x
29"x 29" |
3/8" |
7/8" |
176 |
| CKL60-1/-1L |
57,000 |
208/230-1 |
50 |
29"x
29"x 31-1/2" |
3/8" |
7/8" |
208 |
| CKL62-1/-1L |
62,000 |
208/230-1 |
60 |
29"x
29"x 39" |
3/8" |
7/8" |
258 |
| CKL36-3K/-3L |
35,000 |
208/230-3 |
20 |
23"x
23"x 26-1/2" |
3/8" |
3/4" |
142 |
| CKL49-3A/-3L |
47,000 |
208/230-3 |
30 |
29"x
29"x 29" |
3/8" |
7/8" |
176 |
| CKL60-3/-3L |
57,000 |
208/230-3 |
30 |
29"x
29"x 31-1/2" |
3/8" |
7/8" |
208 |
| CKL60-4/-4L |
57,000 |
460-3 |
15 |
29"x
29"x 31-1/2" |
3/8" |
7/8" |
208 |
NOTE: The *L
models are painted in Architectural Gray. All other
models are painted in Bahama Beige. |
| The
Goodman® CLQ Air Conditioner features
an attractive louvered metal guard that protects
the coil from damage and strengthens the unit. Designed
for ground-level or rooftop mount, the raised base
pan elevates the unit above the slab for excellent
water drainage. The polyester powder-paint finish
provides premium durability and improved UV protection.
§
High-efficiency scroll compressor
§
High-efficiency copper tube/aluminum fin coil
§
Quiet condenser fan system includes an 8-pole,
850-RPM motor, 4-bladed fan and wire discharge grille
§
High-quality sound blanket diminishes compressor
operating sound
§
R-22 refrigerant-charged for 15’ of refrigerant
lines
§
High-capacity, steel-cased liquid line filter
drier
§
Brass liquid and suction service valves mounted
at a 45° angle with sweat connections and service
ports
§
Heavy-gauge G-90 galvanized-steel cabinet with
appliance-quality polyester powder-paint finish
with 500-hour salt-spray approval
§
Attractive Architectural Gray paint finish |
|
Model |
Nominal Cooling Capacity
(BTUH) |
Voltage- Phase |
Maximum Overcurrent
Protection |
Dimensions
W x D x H |
Service Valve |
Decibels |
Ship Weight (lbs) |
| Liquid |
Suction |
| CLQ24-1/-1B |
23,000 |
208/230-1 |
20 amps |
29" x 29"
x 31-1/2" |
3/8" |
3/4" |
74 |
206 |
| CLQ30-1/-1B |
29,000 |
208/230-1 |
30 amps |
29" x 29"
x 31-1/2" |
3/8" |
3/4" |
74 |
250 |
| CLQ36-1/-1B |
35,000 |
208/230-1 |
30 amps |
29" x 29"
x 39" |
3/8" |
3/4" |
74 |
260 |
| CLQ36-1C |
35,000 |
208/230-1 |
30
amps |
29"
x 29" x 39" |
3/8" |
3/4" |
74 |
260 |
| CLQ42-1/-1B |
41,000 |
208/230-1 |
40 amps |
35-1/2" x 35-1/2"
x 31-1/2" |
3/8" |
7/8" |
76 |
269 |
| CLQ48-1/-1B |
45,000 |
208/230-1 |
40 amps |
35-1/2" x 35-1/2"
x 36-1/2" |
3/8" |
7/8" |
76 |
313 |
| CLQ60-1/-1B |
55,000 |
208/230-1 |
50 amps |
35-1/2" x 35-1/2"
x 41-1/2" |
3/8" |
7/8" |
76 |
337 |
NOTE: The *B models are painted in Architectural
Gray. All other models are painted in Bahama Beige.
|

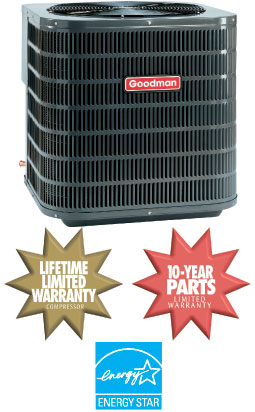

| The
Goodman® CLT Air Conditioner features
an attractive louvered metal guard that protects
the coil from damage and strengthens the unit. Designed
for ground-level or rooftop mount, the raised base
pan elevates the unit above the slab for excellent
water drainage. The polyester powder-paint finish
provides premium durability and improved UV protection.
§
High-efficiency scroll compressor
§
High-efficiency copper tube/aluminum fin coil
§
Quiet condenser fan system includes an 8-pole,
850-RPM motor, 4-bladed fan and wire discharge grille
§
High-quality sound blanket diminishes compressor
operating sound
§
R-22 refrigerant-charged for 15’ of refrigerant
lines
§
High-capacity, steel-cased liquid line filter
drier
§
Brass liquid and suction service valves mounted
at a 45° angle with sweat connections and service
ports
§
Heavy-gauge G-90 galvanized-steel cabinet with
appliance-quality polyester powder-paint finish
with 500-hour salt-spray approval
§
Attractive Architectural Gray paint finish |
|
|
|
|
|
|
|
|
|
| |
|
| CLT24-1/-1B |
22,400 |
208/230-1 |
20 amps |
29" x 29"
x 26-1/2" |
3/8" |
3/4" |
74 |
173 |
| CLT30-1/-1B |
28,000 |
208/230-1 |
20 amps |
29" x 29"
x 31-1/2" |
3/8" |
3/4" |
74 |
208 |
| CLT36-1/-1B |
36,000 |
208/230-1 |
30 amps |
29" x 29"
x 31-1/2" |
3/8" |
3/4" |
74 |
209 |
| CLT36-1/-1C |
36,000 |
208/230-1 |
30 amps |
29" x 29"
x 31-1/2" |
3/8" |
3/4" |
74 |
195 |
| CLT42-1/-1B |
41,000 |
208/230-1 |
30 amps |
29" x 29"
x 39" |
3/8" |
7/8" |
74 |
258 |
| CLT48-1/-1B |
45,000 |
208/230-1 |
40 amps |
29" x 29"
x 41-1/2" |
3/8" |
7/8" |
74 |
270 |
| CLT60-1/-1B |
53,000 |
208/230-1 |
50 amps |
29" x 29"
x 41-1/2" |
3/8" |
7/8" |
74 |
271 |
NOTE: The *B
models are painted in Architectural Gray. All other
models are painted in Bahama Beige. |
| The
Goodman® CRT Air Conditioner features
an attractive louvered metal guard that protects
the coil from damage and strengthens the unit. Designed
for ground-level or rooftop mount, the raised base
pan elevates the unit above the slab for excellent
water drainage. The polyester powder-paint finish
provides premium durability and improved UV protection.
§
High-efficiency Copeland® scroll compressor
§
Copper tube/aluminum fin coil
§
Quiet operating top louvered fan discharge
§
Totally enclosed and permanently lubricated 8-pole,
850-RPM PSC condenser motor
§
Fully charged for 15’ of tubing length
§
Contactor with lug connections
§
Ground lug connection
§
Factory-installed liquid line filter drier
§
Brass suction and liquid service valve with sweat
connections
§
Heavy-gauge, zinc-clad, G90 galvanized steel
§
Attractive Architectural Gray paint finish |
|
Model |
Nominal Cooling
Capacity (BTUH) |
Voltage-Phase |
MOD¹
(amps) |
Dimensions
W x D x H |
Service Valve |
dBs |
Ship Weight
(lbs) |
| Liquid |
Suction |
| CRT18-1 |
19,000 |
208/230-1 |
15 |
29” x 29” x 26½” |
⅜” |
¾” |
78 |
173 |
| CRT24-1 |
22,400 |
208/230-1 |
20 |
29” x 29” x 26½” |
⅜” |
¾” |
74 |
173 |
| CRT24-1A |
23,000 |
208/230-1 |
20 |
29” x 29” x 31½” |
⅜” |
¾” |
78 |
208 |
| CRT30-1 |
28,000 |
208/230-1 |
20 |
29” x 29” x 31½” |
⅜” |
¾” |
74 |
208 |
| CRT36-1 |
36,000 |
208/230-1 |
30 |
29” x 29” x 31½” |
⅜” |
¾” |
74 |
209 |
| CRT36-1A |
36,000 |
208/230-1 |
30 |
29” x 29” x 31½” |
⅜” |
¾” |
74 |
195 |
| CRT42-1 |
41,000 |
208/230-1 |
30 |
29” x 29” x 39” |
⅜” |
⅞” |
74 |
258 |
| CRT48-1 |
45,000 |
208/230-1 |
40 |
29” x 29” x 41½” |
⅜” |
⅞” |
74 |
270 |
| CRT60-1 |
53,000 |
208/230-1 |
50 |
29” x 29” x 41½” |
⅜” |
⅞” |
74 |
271 |
|

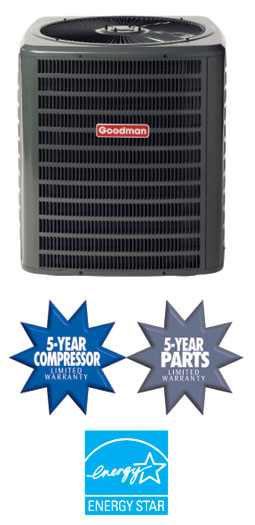

| The
Goodman® GSC13 13 SEER Air Conditioner features
the unique Goodman® sound control top design
for quiet operation. In addition, the unit has an
attractive louvered metal guard that protects the
coil from damage plus a powder-paint finish that
provides premium durability and improved UV protection.
Standard Features
§
Energy-efficiency compressor
§
Copper tube/aluminum fin coil
§
850 RPM condenser fan motor
§
R-22 refrigerant-charged for 15’ of refrigerant
lines
§
Factory-installed liquid line filter dryer
§
Brass liquid and suction service valves with
sweat connections
§
Contactor with lug connections
§
Ground lug connection
§
ETL Certified
Cabinet Features
§
Unique Goodman® sound control top design
§
Steel louver coil guard
§
Heavy-gauge galvanized-steel cabinet
§
Attractive Architectural Gray powder-paint finish
with 500-hour salt-spray approval
§
When properly anchored, meets the 2001 Florida
Building Code unit integrity requirements for hurricane-type
winds |
| Model |
Nominal Cooling
Capacity (BTUH) |
Voltage-Phase |
MOD* (amps) |
Dimensions
W x D x H |
Service Valve |
dBs |
Ship Weight
(lbs) |
| Liquid |
Suction |
| GSC130181A |
18,000 |
208/230-1 |
15 |
26 x 26 x 29 3/4 |
3/8" |
3/4" |
78 |
173 |
| GSC130241C |
24,000 |
208/230-1 |
20 |
26 x 26 x 34 3/4 |
3/8" |
3/4" |
78 |
173 |
| GSC130301B |
30,000 |
208/230-1 |
20 |
29 x 29 x 34 3/4 |
3/8" |
3/4" |
78 |
208 |
| GSC130361A |
36,000 |
208/230-1 |
20 |
29 x 29 x 34 1/4 |
3/8" |
3/4" |
80 |
209 |
| GSC130421A |
42,000 |
208/230-1 |
30 |
29 x 29 x 34 1/4 |
3/8" |
7/8" |
76 |
258 |
| GSC130481A |
48,000 |
208/230-1 |
40 |
29 x 29 x 38 1/4 |
3/8" |
7/8" |
76 |
270 |
| GSC130601B |
57,000 |
208/230-1 |
50 |
35.5 x 35.5 x 38 1/4 |
3/8" |
7/8" |
78 |
271 |
| * Maximum Overcurrent Device |
|

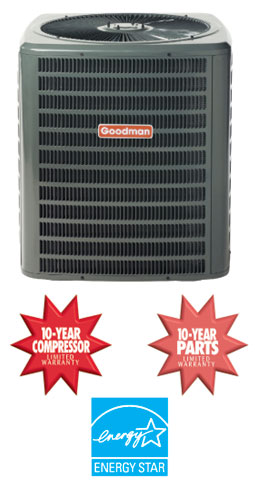

| The
Goodman® GSC14 14 SEER Air Conditioner
features a high-efficiency Copeland®
scroll compressor for improved temperature and humidity
control and the unique Goodman® sound
control top design for quiet operation. In addition,
the unit has an attractive louvered metal guard
that protects the coil from damage plus a powder-paint
finish that provides premium durability and improved
UV protection.
Standard Features
§
High-efficiency Copeland® scroll
compressor with internal pressure relief valve
§
Factory-installed liquid line filter dryer
§
850 RPM condenser fan motor
§
High-efficiency copper tube/aluminum fin coil
§
R-22 refrigerant charged for 15’ of refrigerant
line
§
Brass liquid and suction line service valves
§
Contactor with lug connection
§
Ground lug connection
§
ARI Certified
§
ETL Certified
Cabinet Features
§
Unique Goodman® sound control
top design
§
Steel louver coil guard
§
Heavy-gauge galvanized-steel cabinet
§
Attractive Architectural Gray powder-paint finish
with 500-hour salt-spray approval
§
When properly anchored, meets the 2001 Florida
Building Code unit integrity requirements for hurricane-type
winds |
| Model |
Nominal Cooling
Capacity (BTUH) |
Voltage-Phase |
MOD* (amps) |
Dimensions
W x D x H |
Service Valve |
dB |
Ship Weight
(lbs) |
| Liquid |
Suction |
| GSC140181A |
18,000 |
208/230-1 |
15 |
26 x 26 x 32¼ |
⅜" |
¾" |
TBD |
178 |
| GSC140241A |
24,000 |
208/230-1 |
20 |
26 x 26 x 32¼ |
⅜" |
¾" |
TBD |
178 |
| GSC140301A |
28,800 |
208/230-1 |
20 |
29 x 29 x 32¼ |
⅜" |
¾" |
TBD |
195 |
| GSC140361A |
34,600 |
208/230-1 |
30 |
29 x 29 x 34¼ |
⅜" |
⅞" |
TBD |
199 |
| GSC140421A |
40,000 |
208/230-1 |
30 |
35½ x 35½ x 38¼ |
⅜" |
⅞" |
TBD |
242 |
| GSC140481A |
46,000 |
208/230-1 |
40 |
35½ x 35½ x 38¼ |
⅜" |
⅞" |
TBD |
242 |
| GSC140601A |
56,000 |
208/230-1 |
40 |
35½ x 35½ x 38¼ |
⅜" |
1⅛" |
TBD |
280 |
| * Maximum Overcurrent Protection Device |
|
|
|
| |
 |
|
